H-zontal Span Horizontal Cladding Profile, Affordable Price

जियोमेट्रिक स्टील्स रोल फॉर्मिंग प्राइवेट लिमिटेड लिमिटेड
GST : 27AAECG8112G1ZR

हमें कॉल करें now

07971190737

जांच भेजें

Request To Call Back

Price 150 आईएनआर/ Square Meter

मूल्य/उद्धरण प्राप्त करें

MOQ : 400 Square Centimeters

Specification

मटेरियल

टाइल सामग्री

टाइल का प्रकार

टाइप करें
Cladding Profile

साइज
6 * 3 feet

शेप
Rectangular

पैटर्न
Color Coated

Trade Information

Minimum Order Quantity
400 Square Centimeters

भुगतान की शर्तें
, ,

मुख्य निर्यात बाजार
, , , , , , , ,

मुख्य घरेलू बाज़ार

प्रमाणपत्र
ISO, CE, GEAC, Make In India

About

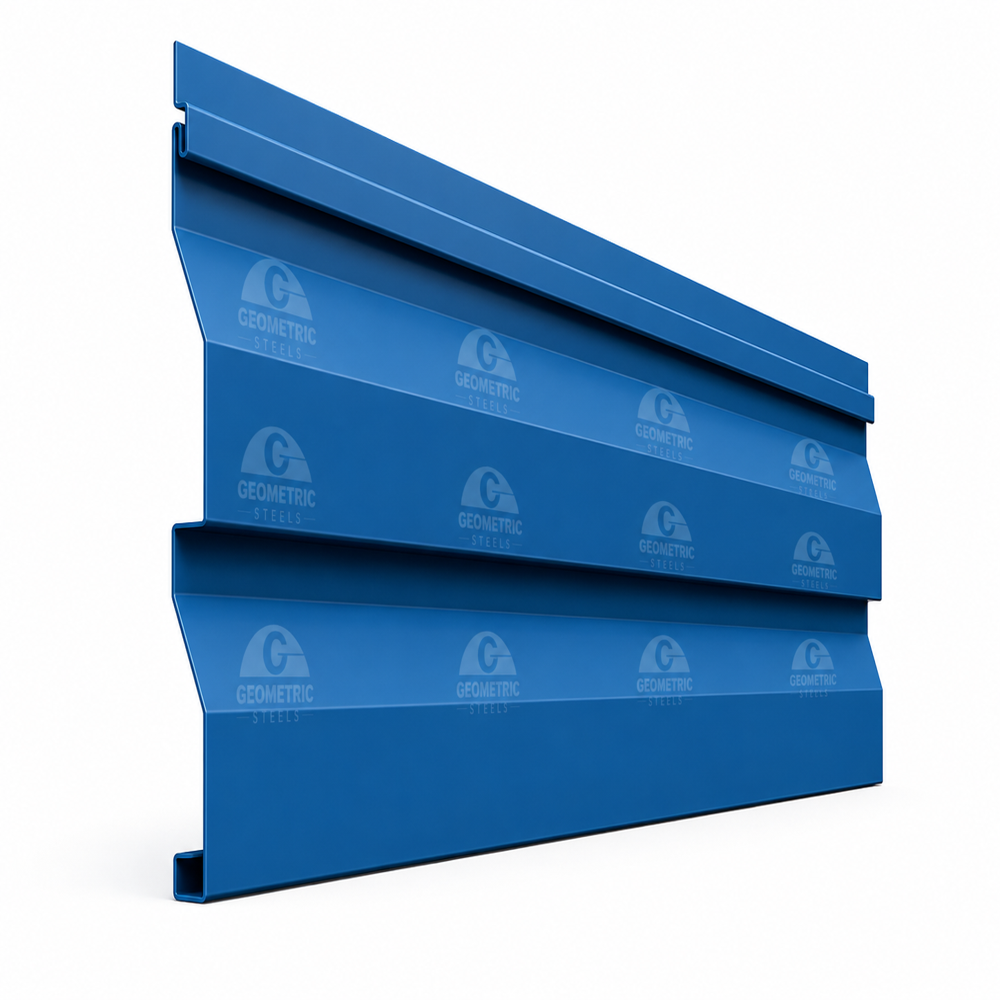

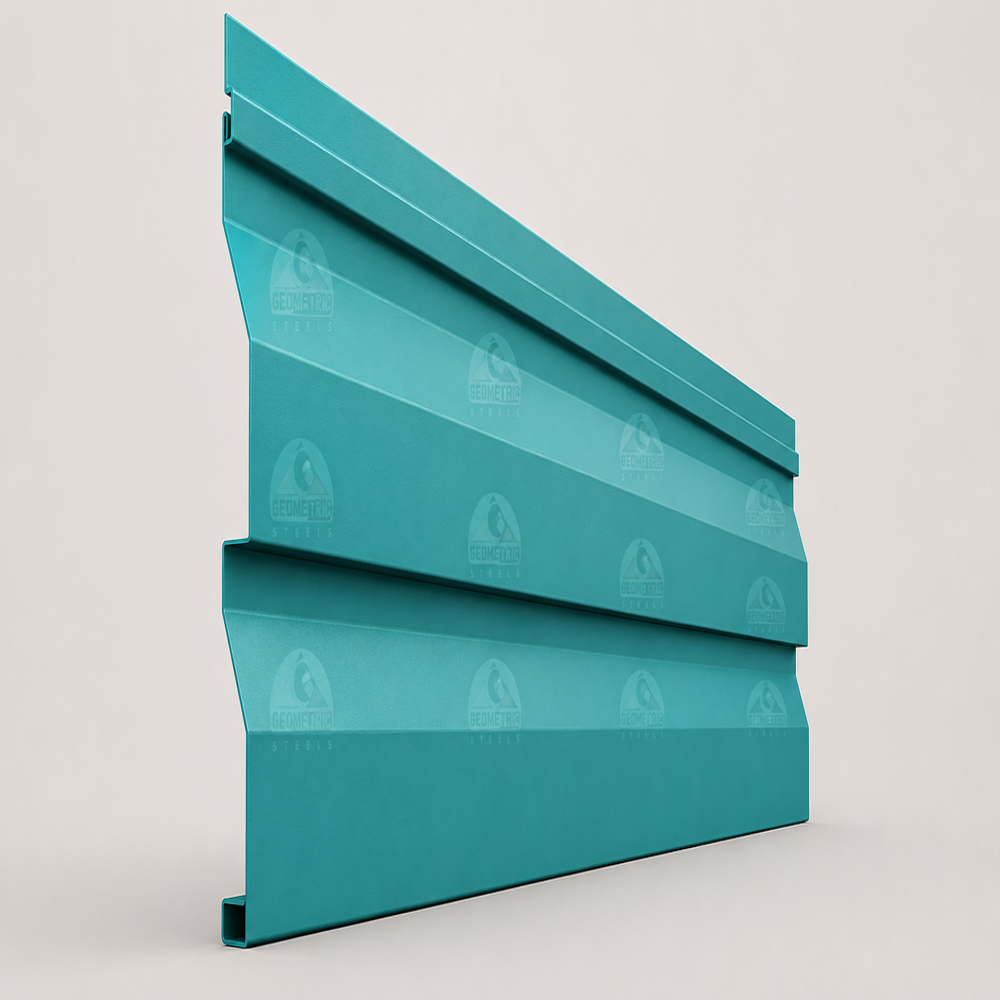

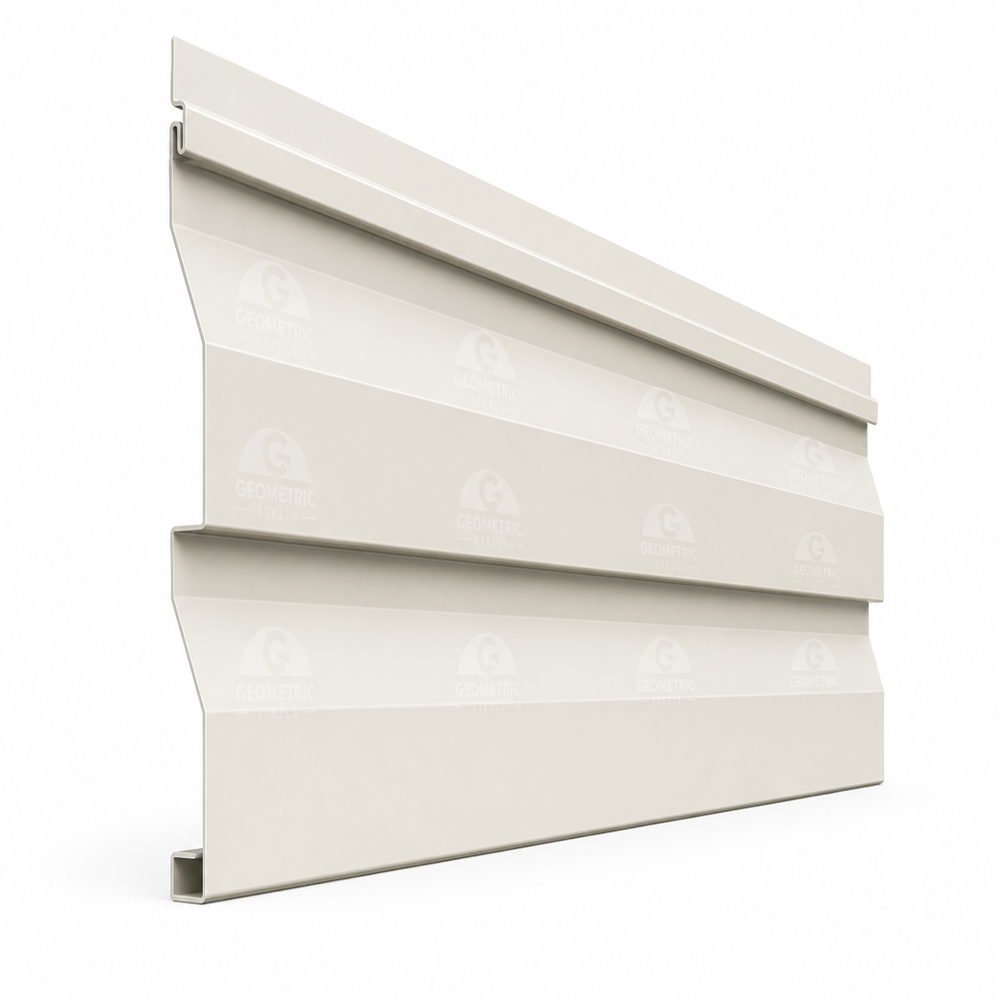

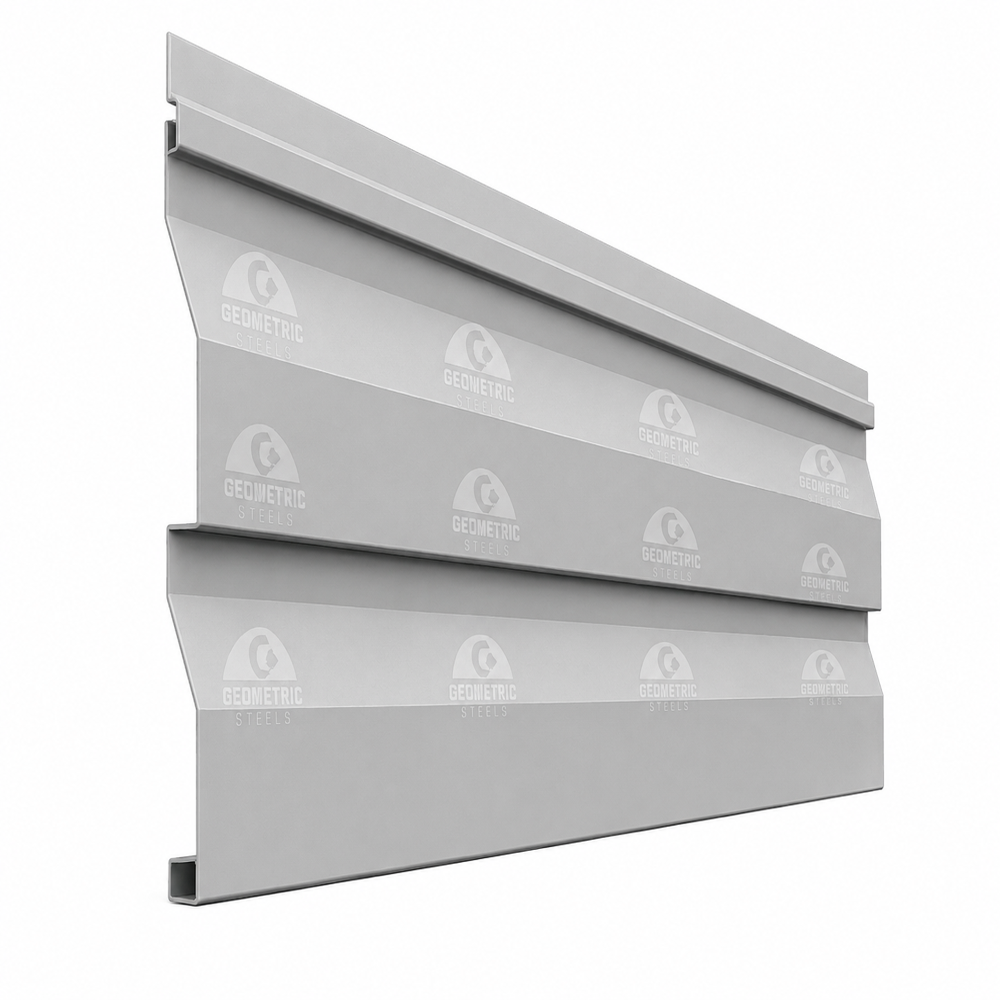

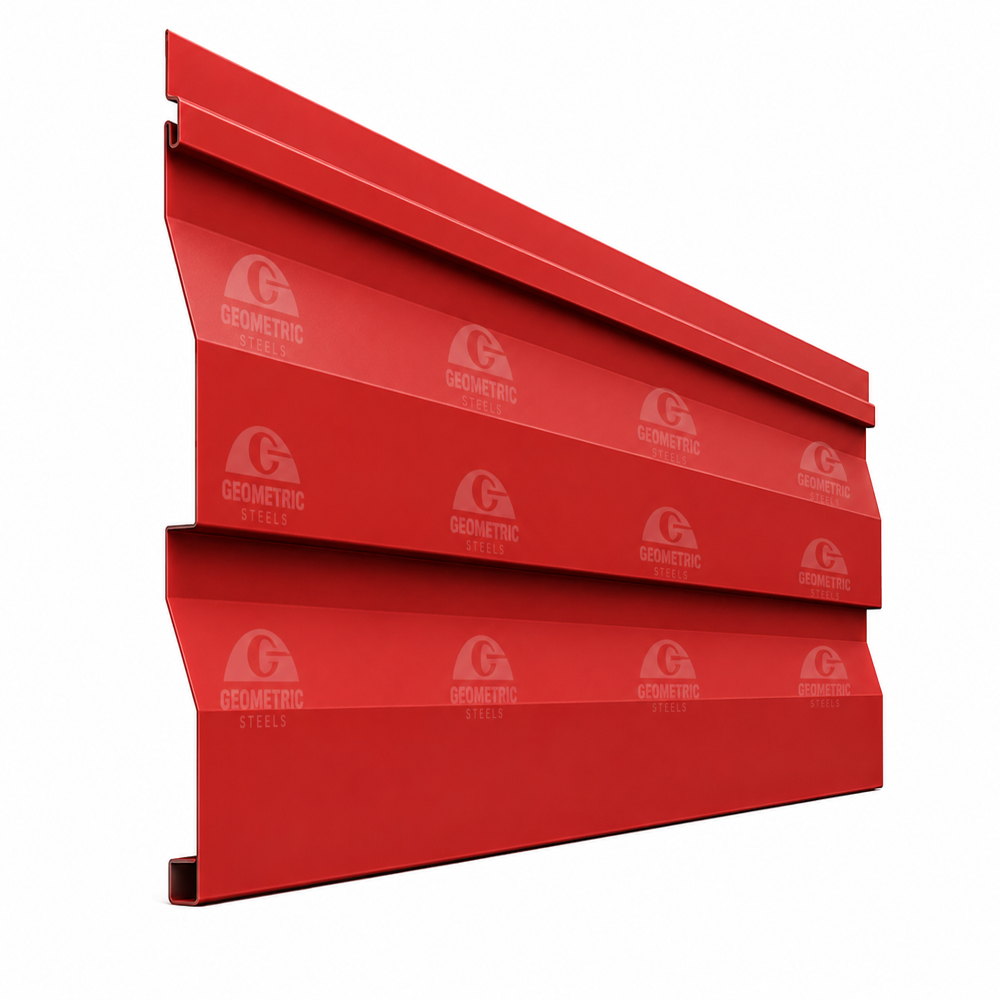

H-ZONTAL SPAN

A horizontalmetal cladding profile designed for modern architectural applications,offering a sleek and clean appearance with a concealed screw fastening systemfor improved aesthetics and weatherproof performance.

Base Metal: Colour coated Galvanise, Aluminium, Galvalume Steel,
Thickness: Typically ranges from 0.40mm to 1.20mm, depending on structural requirements.
Coating Options:

Hot-Dip Al-Zinc Coating (55% Aluminium, 43.4% Zinc, 1.6% Silicon)
Pre-painted finish with RMP, PVDF, or SMP coatings for long-term durability.
Corrosion protection compliant with ASTM A792 or equivalent standards.

Advantage

Profile Orientation: Horizontal alignment.
Fastening System: Concealed screw system to hide fixings and ensure a seamless appearance.
Panel Width: 226mm effective coverage.
Panel Length: Customizable as per project requirements.
Profile Design: Smooth or ribbed surfaces, with options for clean lines or subtle textures.
Joint Type: Overlapping an interlocking system for better alignment and reduced water ingress.

ProfileFeature

Minimalistic design with hidden screws, suitable for modern architecture.
Superior resistance to rain, wind, and UV exposure due to the concealed fastening.
Horizontal lines can visually elongate a structure, making it appear larger or more expansive.
Easy to clean and maintain due to non-exposed fasteners.
Long-lasting material and coatings ensure structural and aesthetic integrity.

Applications

Commercial and residential facades.
Industrial building exteriors.
Institutional structures (e.g., schools, hospitals, offices).

Installation

Panels are installed horizontally using the concealed screw system simplifies attachment without compromising strength.
The interlocking nature of horizontal profiles ensures consistent spacing and alignment, reducing errors during installation.
Use of Trims, flashings, and sealants for a watertight installation.
